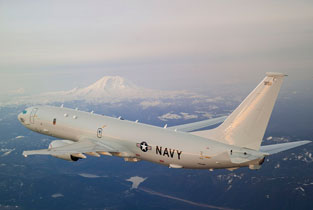

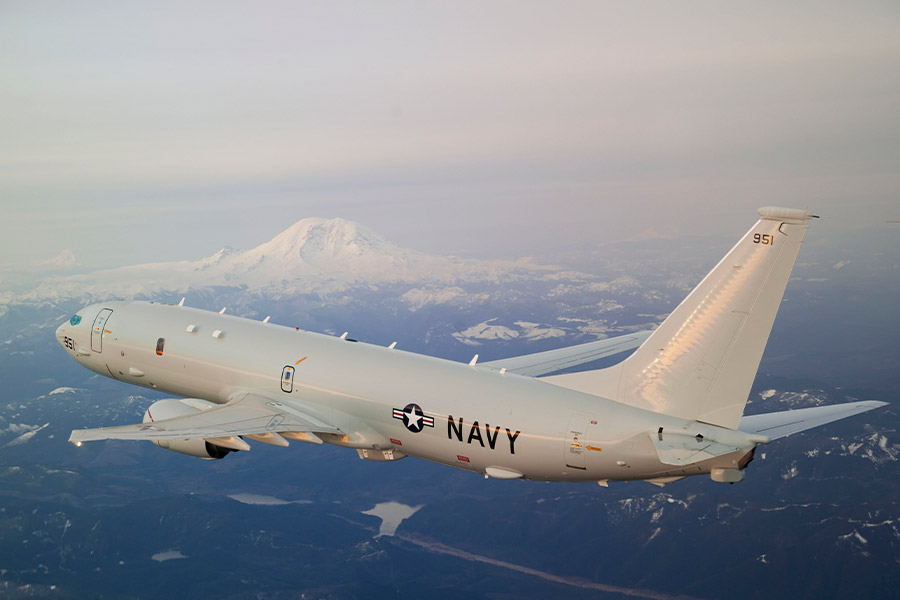

A derivative of the Next-Generation 737-800, the P-8A combines superior performance and reliability with an advanced mission system that ensures maximum interoperability in the future battle space.
Boeing was awarded a $3.89 billion contract for the system development and demonstration (SDD) phase of the program on June 14, 2004. SDD activities include developing and integrating all the necessary software and onboard mission systems and developing training systems. The P-8A is expected to significantly transform how the Navy’s maritime patrol and reconnaissance force will train, operate and deploy.
The initial SDD contract included building five test vehicles: three flight test aircraft (T1, T2 and T3), one full-scale static test airframe and one full-scale fatigue test airframe (S1 and S2). The contract included an option for two additional test vehicles (T4 and T5), which has since been exercised. One additional flight test aircraft (T6) also was added to the contract.
In November 2005 the Navy announced that the P-8A preliminary design review (PDR) was the best major weapons system PDR it had ever reviewed. A successful critical design review was completed in July 2007.

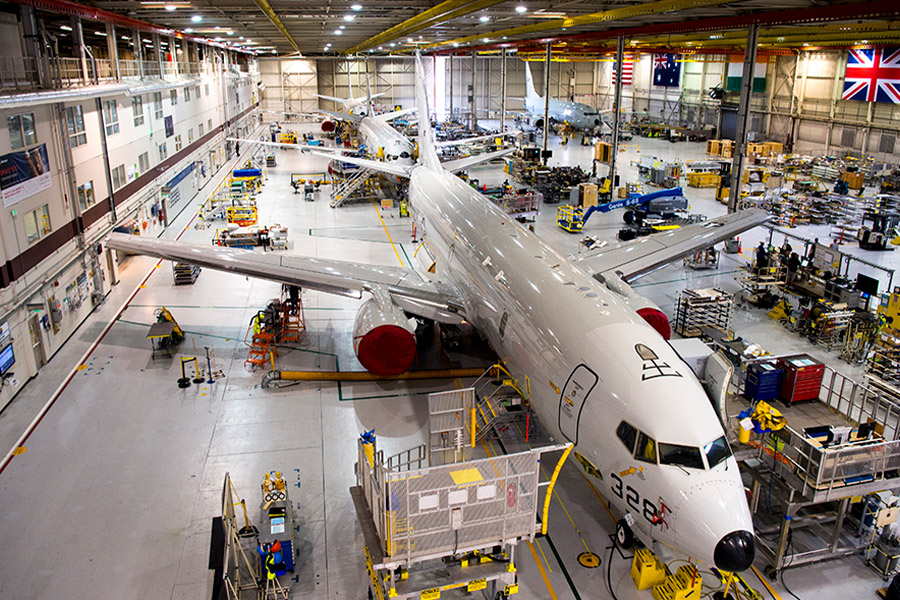

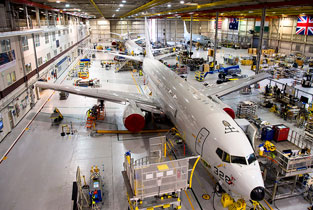

The team started production on the first test aircraft on Dec. 11, 2007, at Spirit’s facility. Fuselage assemblies come together on Spirit’s existing Next-Generation 737 production line. Spirit delivered the first fuselage to Boeing in late March 2008 and final assembly of the aircraft began the same day in Renton, Wash. The P-8A made its first flight on April 25, 2009. Full-scale static testing of the P-8A’s airframe was completed in January 2011. The Navy has surpassed 2,500 flight-test hours in the P-8A test aircraft.
|Propulsion:||Two CFM56-7 engines providing 27,000 pounds thrust each|
|Length:||129.5 feet (39.47 meters)|
|Wing Span:||123.6 feet (37.64 meters)|
|Height:||42.1 feet (12.83 meters)|
|Maximum Takeoff Gross Weight:||189,200 pounds (85,820 kilograms)|
|Speed:||490 knots (564 mi/h, 789 km/h)|
|Range:||1,200+ nautical miles, with 4 hours on station (1,381 miles, 2,222 kilometers)|
|Ceiling:||41,000 feet (12,496 meters)|
CFM International provides the CFM56-7 engines for the P-8A. Each of the two provides 27,300 pounds of takeoff thrust.
Northrop Grumman’s Electronic Systems sector builds the directional infrared countermeasures system, and the electronic support measures system.
Raytheon provides the AN/APY-10 radar, which delivers all weather, day/night multi-mission maritime, littoral and overland surveillance capabilities.
GE Aviation supplies both the Flight Management and Stores Management systems on the P-8A.
BAE Systems provides the mission computing and display system (MCDS), flight deck panels, and data diode.______________________________________________
